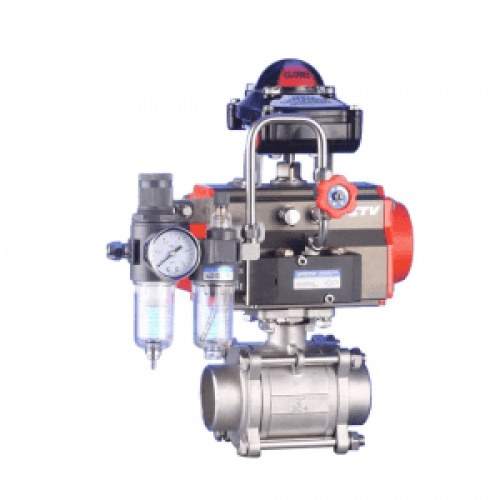

PNEUMATIC THREE PIECE SCREW BALL VALVE Q611F

PNEUMATIC THREE PIECE SCREW BALL VALVE Q611F
CategoriesBall Valve
AlbumView larger image
BrandVALAN
Update Time2021-04-11
Detail Information

Product characteristics

1. Ball valve design according to standard ASME B16.34

2. Simple structure, good sealing performance and small torque

3. Precision casting, solid solution treatment

4. Locking device

5. Full Flow Design



Product parameters

Valve body materials: carbon steel WCB, stainless steel 304, 316

Caliber: 1/4; (DN6 ~ DN100)

Connection mode: internal thread BSP, BSPT, NPT

Pressure range: 1000PSI

Working temperature: – 20 – 180.

Operating mode: handle, pneumatic, electric, etc.



Main dimensions

Nominal diameterThree pieceTwo pieceH1
Internal threadButt weldingSocket weldingInternal thread
GdLBWdLSWdLdL
151/2″157024157222.515681562145
203/4″207828208128.520822072160
251″258634259134.525912585180
321-1/4″321054132103433210832100195
401-1/2″381134938120493812938107205
502″501326250139615014850120225
652-1/2″641867864193776418664160275
803″782069478220907820678178295
1004″98240124982701159824098216340
