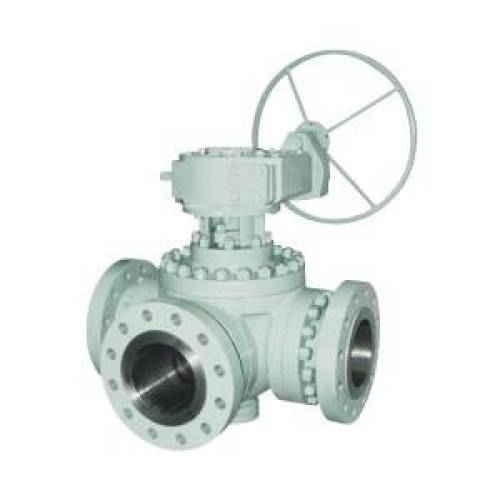

Q44 / 45F FLANGE THREE WAY BALL VALVE

Q44 / 45F FLANGE THREE WAY BALL VALVE
CategoriesBall Valve
AlbumView larger image
BrandVALAN
Update Time2021-04-11
Detail Information

Q44/45F Main performance specification for flanged three way ball valve

Nominal pressure

PN(MPa)

Test pressure
housingHigh pressure liquid sealLow pressure liquid seal
1.62.41.760.6
2.53.752.750.6
4.06.04.40.6
CLASS1503.02.20.6
Applicable conditionsApplicable mediumWater, oil, gas and other non corrosive media and acid-base corrosive media
Applicable temperature-25~350℃

Material of main parts

Part nametexture of material
GBASTM
Valve body, valve coverWCBA216-WCB
seal ringPTFE、Para polyphenylenePTFE、Para polyphenylene
sphere1Cr18Ni9TiSS304
Valve seat, valve stem20Cr13A246-416
Stud bolt35CrMoAA193-B7

Q44/45F Drawing of flanged three way ball valve .png


Q44F Flange type three way ball valve PN1.6MPa main connecting dimensions

modelNominal diameter DN(mm)LL2DD1D2bfZ-dHW
Q44F-16C(P)(R)15150729565451424-1495130
201608010575551424-14110130
251809011585651424-18120140
32200100135100781624-18144180
40220110145110851634-18152220
502401201601251001634-18182220
652601301801451201634-18193240
802801401951601352038-18217270
1003201602151801552038-18245350
1253801902452101852238-18282500
1504402202802402102438-23319600
20055026033529526526312-233801000
25067031040535532030312-254601400
30072037046041037530312-255201800

Q45F Flange type three way ball valve PN1.6MPa main connecting dimensions

modelNominal diameter DN(mm)LL2DD1D2bfZ-dHW
Q45F-16C(P)(R)15150729565451424-1495130
201608010575551424-14110130
251809011585651424-18120140
32200100135100781624-18144180
40220110145110851634-18152220
502401201601251001634-18182240
652601301801451201634-18193270
802801401951601352038-18217350
1003201602151801552038-18245500
1253801902452101852238-18282600
1504402202802402102438-233191000
20055026033529526526312-233801300
25067031040535532030312-254601700
30072037046041037530312-255202100
