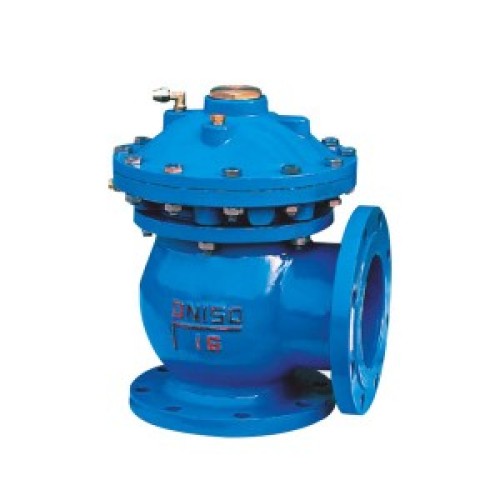

JM7 / 644X QUICK OPENING SLUDGE DISCHARGE VALVE

JM7 / 644X QUICK OPENING SLUDGE DISCHARGE VALVE
CategoriesWATER CONTROL VALVE
AlbumView larger image
BrandVALAN
Update Time2021-04-11
Detail Information

Technical parameters of jm7 / 644x quick opening sludge discharge valve



Nominal pressure: 0.6MPa, 1.0MPa

Nominal diameter: 100 ~ 400mm

Minimum driving pressure: 0.15Mpa

Applicable medium: water and sewage

Driving medium: water, gas

Applicable temperature: 0 ~ 80 ℃

Flange standards: GB / T 17241.6, GB / T 9113, en1092

Test standard: GB / T 13927, API598



Installation diagram of jm7 / 644x quick opening sludge discharge valve

JM7644X 快开排泥阀安装示意图

Material of main parts

Part nameValve body, valve coverDiaphragm pressure plate and valve discStemdiaphragm
Material ScienceCast iron, ductile iron, carbon steelDuctile iron, bronzestainless steelNylon reinforced rubber

Main connection dimensions

DN100150200250300350400
L160190225260280315340
L1120150190220260300340
H370440530615785880970
