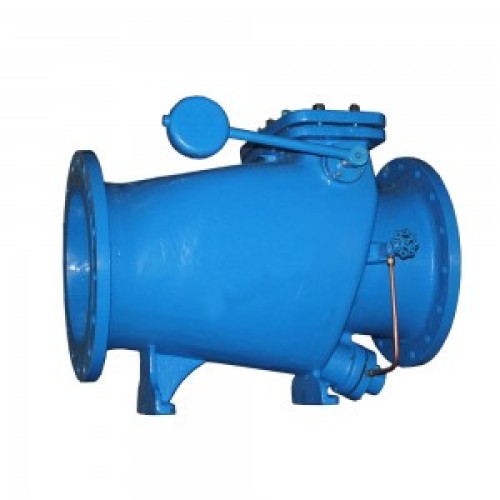

MICRORESISTANCE SLOW LOCKUP CHECK VALVE HH44X

MICRORESISTANCE SLOW LOCKUP CHECK VALVE HH44X
CategoriesCheck Valve
AlbumView larger image
BrandVALAN
Update Time2021-04-11
Detail Information

Micro-resistance slow-closing check valve, also known as the check valve, its role is to prevent medium backflow in the pipeline. The opening and closing parts open or close by themselves depending on the medium flow and force to prevent the medium backflow valve is called a check valve. Check valves belong to automatic valves. They are mainly used in pipelines where media flow in one direction. Only one direction is allowed to flow in order to prevent accidents. It is suitable for cleaning medium, not for medium containing solid particles and high viscosity.



purpose

Micro-resistance slow-closing check valves are suitable for nominal pressure PN1.0 MPa~42.0 MPa, Class150-2500; nominal diameter DN15-1200mm, NPS1/2-48; working temperature-196-540 C pipelines to prevent medium backflow. By choosing different materials, it can be applied to water, steam, oil, nitric acid, acetic acid, strong oxidizing medium and urea and other media.



Main material

Carbon steel, low temperature steel, dual phase steel (F51/F53), titanium alloy, aluminium bronze, INCONEL625, SS304, SS304L, SS316, SS316L; chromium-molybdenum steel, Monel (400/500), 20 # alloy, Harrington alloy and other metal materials.



Structural characteristics

1. Structural length is short, and its structural length is only 1/4~1/8 of the traditional flange check valve.

2. Small size, light weight, its weight is only 1/4~1/20 of the traditional micro-blocking check valve.

3. The valve disc closes quickly and the water hammer pressure is low.

4. Horizontal or vertical pipes are available and easy to install.

5. Flow passage is unobstructed and fluid resistance is small.

6. Sensitive movement and good sealing performance

7. Short disc stroke and low impact of valve closure

8. Integral structure, simple and compact, beautiful appearance

9. Long service life and high reliability



Performance specification

Nominal diameter(mm)40~800
Nominal pressure1.01.62.5
Ps(MPa)housing1.52.43.75
Seal up1.11.762.75
Maximum working pressure1.01.62.5
working temperatureThe temperature of <80 ~C can reach 200 ~C according to user's requirement.
Applicable mediumWater, Weak Corrosive Medium



Major Component Materials

Part nameMaterial name
Body and bonnetGray Iron, Cast Steel, Ductile Iron
DiscRubber assemblies
Valve shaftStainless steel



Design drawings

微阻缓闭止回阀



Main Dimensions Table

DN(mm)LHB
40200300220
50230300270
65290320290
80310354300
100350350320
125400380340
150480500410
200500580450
250600670550
300700730580
350800820630
400900920700
4501000950800
50011001100900
60013001200990
700140015501120
800150017001300
