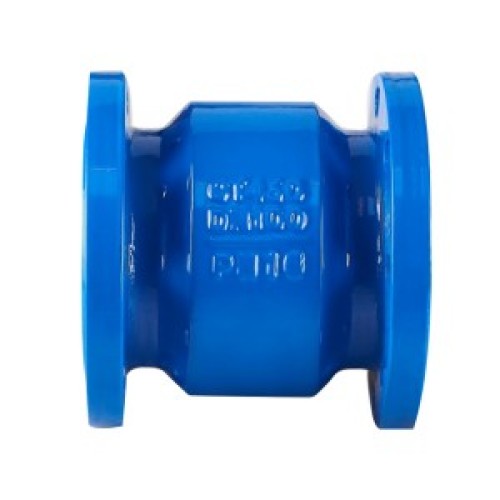

HC41X ENERGY SAVING SILENCING CHECK VALVE

HC41X ENERGY SAVING SILENCING CHECK VALVE
CategoriesCheck Valve
AlbumView larger image
BrandVALAN
Update Time2021-04-11
Detail Information

echnical parameters of hc41x energy saving silencing check valve

Nominal pressure:1.0~1.6MPa

Nominal diameter:40~600mm

Applicable medium: water and weak corrosive fluid

Applicable temperature:0~80℃

Flange standard:GB/T 17241.6、GB/T 9113、EN1092

Test standard:GB/T 13927、API 598

Typical installation diagram

HC41X节能消声止回阀安装示意图

Materials of main parts of hc41x energy saving and silencing check valve

modelvalve bodyseal ringSpring
HC41X-10/16Cast steel, ductile iron, carbon steel, stainless steelNitrile rubberStainless steel wire1Cr18Ni9Ti

Main connection dimensions                                                                                                                mm

DN40506580100125150200250300350400450500600
L112120130150165190210255310320380405430450510
