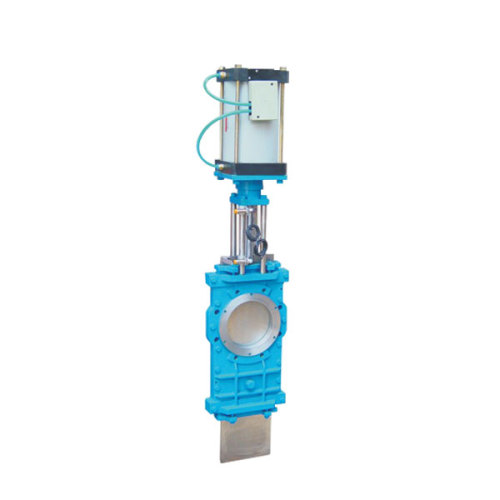

Executive standard of pneumatic gate valve

Executive standard of pneumatic gate valve
CategoriesGate Valve
AlbumView larger image
BrandVALAN
ModelZ673X/FSCZ
Update Time2021-04-13
Detail Information

Executive standard of pneumatic gate valve

design codeStructural lengthTest and inspectionPressure temperature
JB/T 7746、API602MSS SP-81JB/T 7746MSS SP-81JB/T 9092、API598MSS SP-81GB/T 9131、ANSI B16.34

Material of main parts

Valve body and upper coverCarbon steel, stainless steel
Ramstainless steel
Stemstainless steel
seal ringPTFE, PTFE rubber

Main performance specifications

Nominal pressurePN
Shell test1.5XPN
Sealed pressure vessel1.1XPN
working temperatureRubber ≤ 80 ℃, PTFE seal ≤ 180 ℃
Applicable mediumDry ash, pulp, syrup, sewage, gas powder particles, slag water mixture, etc

Drawing of pneumatic gate valve

气动插板阀图纸

Main connecting dimensions of pneumatic gate valve                                              PN1.0/1.6MPa

DN(mm)LH1H2H3D1D2D0N-MPB
Z673X/FSCZ    Z973X/FSCZ
100514057055851801562408-M16490170
125574507506652101842608-M16490190
150575108107702402112808-M20490240
2007061593092029526630012-M20520335
250707151080117535531932012-M24520335
300768221140125541037034012-M24520335
350769751290145547042936016-M24520350
4008910241344155952548040016-M27605390
4508912351560192658554845020-M27605430
50011412651610222665060950020-M30605430
